Tribli - Rapid Structural Design

A new application for structural engineers that doesn't demand perfection...

Tribli provides a rapid and intuitive approach to the structural design of multi-storey structures. Models can be imported directly from PDF documents, with all column and wall loads provide within minutes of model set-up.

Download Now Learn More

A True Multi-Functional Building Design Tool

Everything you need to rapidly iterate design solutions without sacrificing quality

Architectural drawing marked up with PDF Scraper style mark-ups

Simple Model Setup

Using simple PDF markups from industry standard markup software (such as Bluebeam Revu), structural elements can be traced over architectural or structural CAD backgrounds for extremely fast data input

Automatic Tributary Area Generation

One-click generation of column and wall tributary areas. A modification ('shear throw') factor that accounts for elastic load distribution can be automatically generated and truncated to account for pattern loading effects

In-built 3D Rendering

Rapidly visualise your structure in 3D to simplify design and to provide quick, visual feedback to clients and architects

Structural Design to AS3600:2018

Full support for structural concrete column, wall and pad footing design and optimisation to AS3600:2018

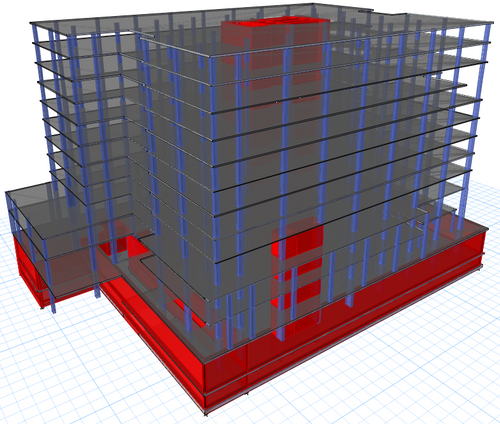

One-click import/export compatibility with a range of industry standard software packages

Seemlessly export your structural model to software packages such as Etabs and SAFE, as well a huge range of tabular export options. Models can also be imported from Etabs to assist in model checking

Australian Made

Made in Australia, by Australian engineers, for the Australian market

Active Develpment

Continuous development and improvement means that Tribli is getting better all the time. Get in touch with us if you have a specific feature you would like to see

Fast

By using PDFs as the primary input medium, structural models can be built FAST, with all column, wall and footing sizes provided within minutes of opening the marked-up PDF

Metrics

Optional logging of key building metrics enables easy project benchmarking

What Our Customers Have to Say

"Tribli is a user-friendly tool that provides time savings and consolidates several components of engineering design onto one reliable platform"
‍
Granil G

"Tribli transforms PDF markups into an interactive model and has saved us significant time by automating and consolidating previously monotonous tasks, reducing design risk and assisting with quality assurance. We have successfully utilized this tool from concept design and initial structural sizing, through to detailed design and construction documentation."
‍
James H

"Tribli has brought efficiencies to our design workflow that have allowed us to turn around designs faster for our clients. It has become an invaluable tool for concept designs, where we use it to rapidly provide preliminary column sizes to the architect, as well as to generate ETABs models. As the design progresses, the software allows us to rapidly update our structural design, and through construction documentation it allows us to verify the outputs of other software."
‍
Justin H
